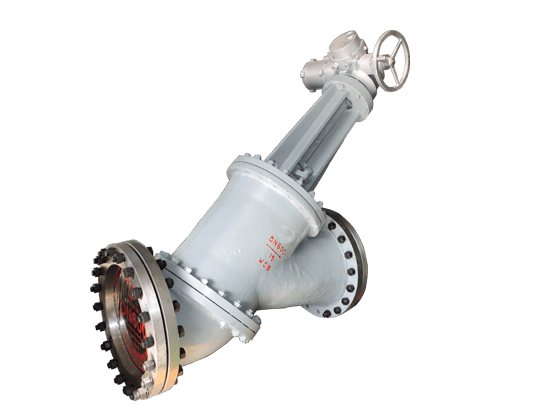

  • Y type electric slurry globe valve 01

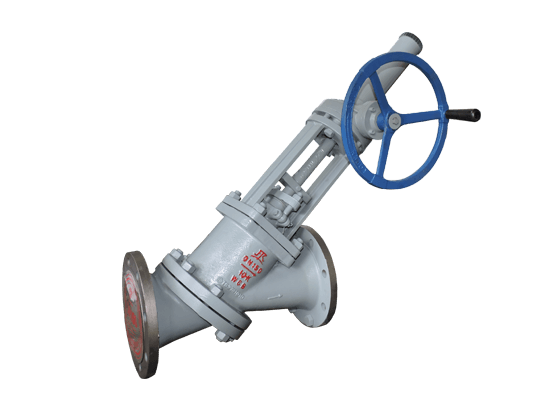

  • Y Type Slurry globe Valve 02
  • Y Type Slurry globe Valve
  • Y type electric slurry globe valve 01
  • Y Type Slurry globe Valve 02
Y Type Slurry Globe Valve
Flange connection
ASME B16.5,GB/T9113
Design standard
ASME B16.34
Pressure Range
Class150~Class600
Size Range
DN50~DN 600, NPS2 ~NPS24
Material
carbon steel, stainless steel
Connection type
Flange
Working Temperature
≤425℃
Operating Type
Pneumatic, manual, electric
Sealing surface material
Alloy,Carbide
Pressure test
GB/T13927, API598
Model
FRJ545Y
Share with:
Download
Introduction

FREE-VALVE’s Y type slurry globe valve is ideal for many applications because the valves are designed for use on abrasion materials. Y Type Slurry Valve is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replace the valve seat.The valve with abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance.The Y type slurry valve is specially offered for controlling or stopping the slurry, the slurry valves are used primarily in the alumina,metallurgy , chemical fertilizer and mining industry.


Advantage
1. The valve body is split type body,it is divided into left and right parts with a seat between them. The seat is installed between the two valve body ,so the seat can be replaced easily .
2. An anti-washing and anti-corrosion protection stem is set  in the cavity of the valve body.
3. Y Type Slurry Valve has a good abrasion resistance with higher hardness because Full Stellite or Tungsten carbide overlaying seat sealing surface.
4. Anti-washing and anti corrosion protection plate is set in the cavity of the valve body .
5. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.

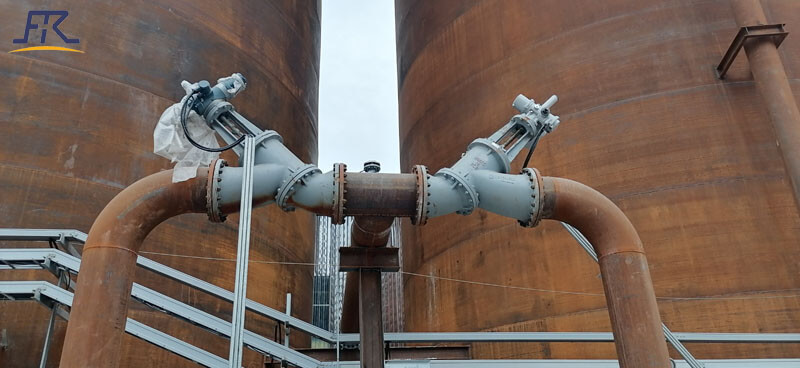

Applications
Alumina,Metallurgy , Chemical fertilizer , Mining industry, Paper-making.
