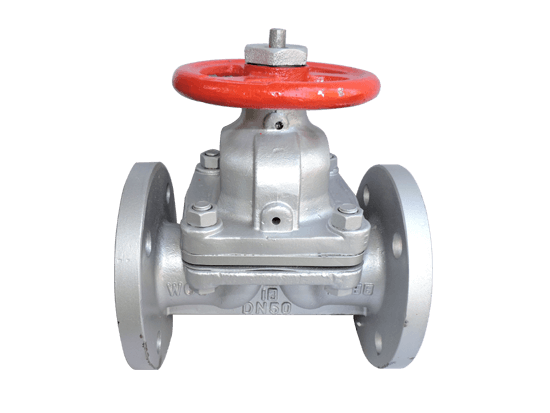

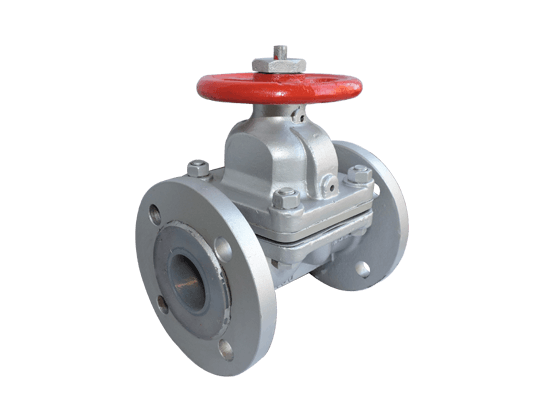

Manual Flange Fluorine Lined Diaphragm Valve
Size Range
DN25~DN400
Pressure Range
Class 150 /PN10 /PN16
Connection Type
Flange
Lining Material
PTFE , PFA , FEP
Body material
WCB, CF8 ,CF8M
Pressure test
GB/T13927, API598
Face to Face
GB/T12221, ASME B16.10
Operating Type
Manual Handwheel
Share with:
Download
Introduction

 FREE-VALVE’s manual fluorine lined diaphragm valve is a special form of on-off valve, disc is a diaphragm made of corrosion-resistant soft material,the diaphragm separates the bottom body cavity from the top bonnet cavity, so that the stem, metal disc and other parts above the diaphragm are not subject to media corrosion,so fluorine lined diaphragm valve eliminate the packing seal structure, and will not produce media leakage.

Advantage
1.The diaphragm of using FEP/FPA and rubber composite, suitable for variety of corrosive media.
2.100 percent gas seal can be achieved to ensure no leakage in outlet port.
3.No direct contact between metal parts and medium slurry.
4.Bi-directional and full flowing path can reduce pressure drop, weaken abrasion and prolong the service working life.



Applications
 FREE-VALVE’s manual fluorine lined diaphragm valves are widely used in chemical industry, medicine and other industrial sectors to achieve the cutting of acid, alkali and other corrosive media in the production process
