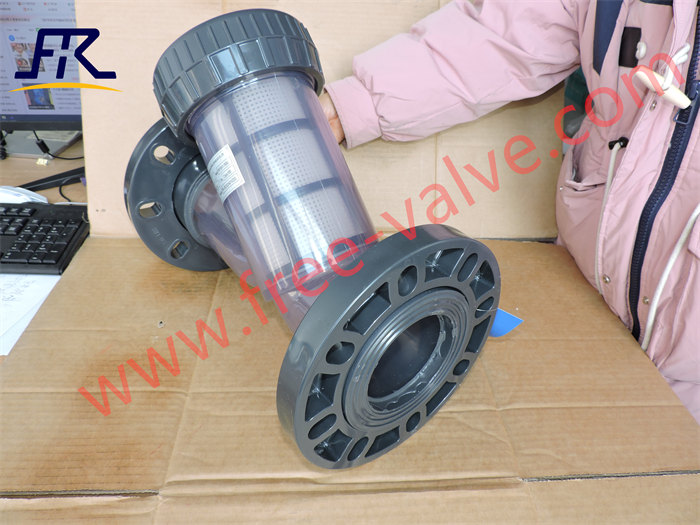

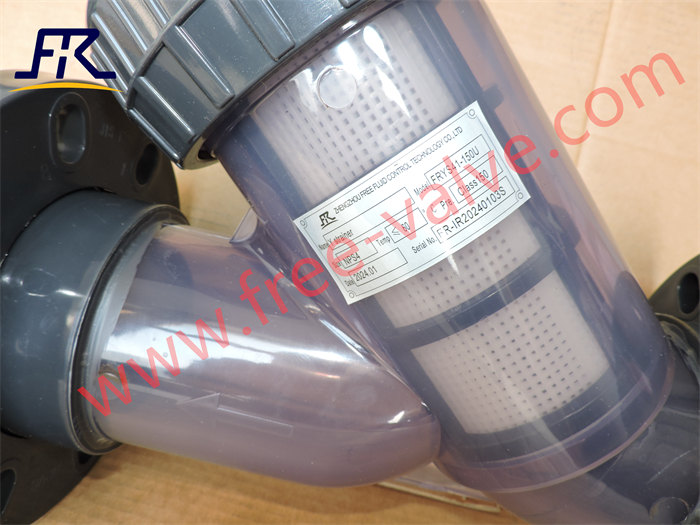

UPVC Plastic Y typeStrainer for Liquid Filtration Online

FREE-VALVE’s UPVC Plastic Y typeStrainer is an indispensable device for conveying the medium on the pipeline , and is usually installed at the inlet end of the pump. It is used to eliminate impurities in the medium to protect the normal use of valves and equipment.

Features

1. Filterscreen material is PP plastic, strong corrosion resistance,the filter screen has many specifications to meet the filtration requirements of different occasions
2. Filter screenis easy to disassemble and assemble, easy to clean .
3. Engineering plastic series check valve using RPP, PVDF, CPVC, UPVC and other corrosion resistant thermoplastic injection molding, has a strong corrosion resistance.According to the selection of different materials according to the medium, the use temperature of RPP is -14 ~ 100°C, the use temperature of PVDF is -40 ~ 135°C, and the use temperature range of UPVC is -10 ~ 60°
4. Low liquid flow resistance,the inner wall of plastic molding products is smooth, and the friction coefficient is small.
5. Excellent chemical properties: this product, tasteless, acid and alkali resistance, corrosion resistance, wide range of use.

Technical Specification

1. Size Range: NPS2~NPS12,DN50~DN300
2. Applicable Temperature:-20~135℃
3. Connection Type: Flange
4. Flange ends:GB/T9113,EN1092,ASME B16.25
5. Body material：RPP, PVDF, CPVC, UPVC
6. Test standard：GB/T13927,API598
7. Flange To Flange:ANSI B 16.10,GB/T12221

Application

FREE-VALVE’s UPVC Plastic Y typeStrainer  is widely used in chemical, metallurgy, paper, electronics, medicine and food industries, especially in the use of circulating water in the factory, so that the water resources can be used to the maximum.It can effectively filter out particle matter, protect equipment, reduce system blockage, and extend service life.
