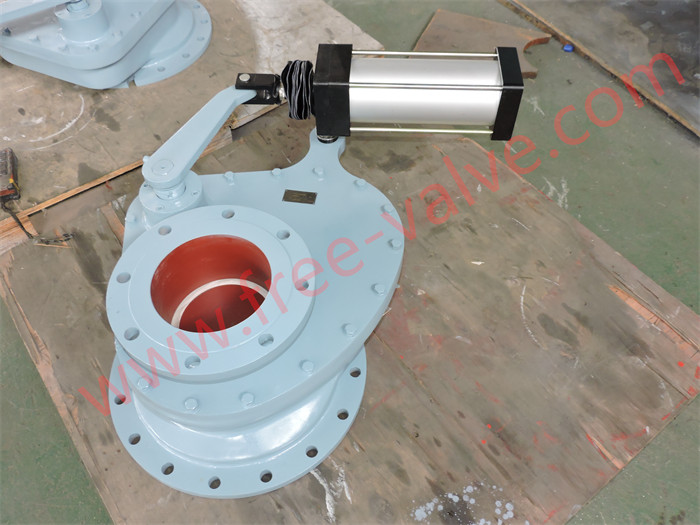

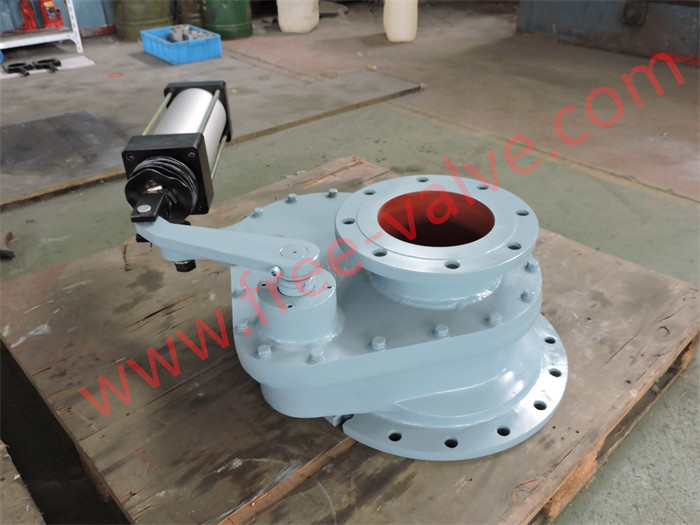

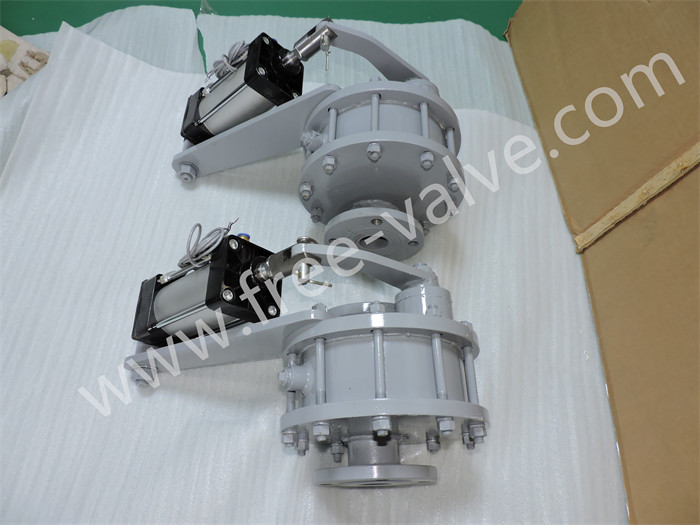

DN50 Pneumatic Ceramic Rotary Double Disc Gate Valves FRXZ644TC for Fly ash
FREE-VALVE Ceramic Rotary Double Disc Gate Valves are designed for pressurized and vacuum systems including dense and dilute phase pneumatic conveying systems, discharge and vent applications in steel plant and coal power.
FREE–VALVE Ceramic Rotary Double Disc Gate Valves are designed for pressurized and vacuum systems including dense and dilute phase pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The double ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve,the valve is used to replace the dome valve in the pipe line of the ash system.
Features
- The cylinderpiston rod does not contact with the medium directly, which greatlyprolongs the service life of the cylinder and has a higher service temperature without damaging the cylinder.
- The sealing faces of the valve are made toughened engineering ceramics with good abrasion resistance and prolonged service life.
- Product with customized structural length and connection size is available.
- The valve discrotational motioncan avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
- The spring between the disc and disc seat is loaded with a floating connection. The spring force of the disc always matches the valve seat, ensures the sealing of the valve, and also helps to compensate forexpanding when heated and contracting when cooled ,and sealing surface wear.
- The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.
Technical Specification:
1) Size Range: NPS4~NPS12,DN100~DN300
2) Nominal pressure: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange
5) Sealing material: engineering ceramics
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Valve body : GB/T12224,ASME B16.34
Operating Mode: Pneumatic
Main outline and connection dimensions
| DN | PN | L | D | D1 | D2 | n-∅d |
| DN50 | PN10 | 200 | 160 | 125 | 99 | 4-∅18 |
| DN65 | PN10 | 220 | 180 | 145 | 118 | 4-∅18 |
| DN80 | PN10 | 230 | 200 | 160 | 132 | 8-∅18 |
| DN100 | PN10 | 250 | 220 | 180 | 156 | 8-∅18 |
| DN125 | PN10 | 265 | 250 | 210 | 186 | 8-∅18 |
| DN150 | PN10 | 280 | 285 | 240 | 210 | 8-∅22 |
| DN200 | PN10 | 310 | 340 | 295 | 266 | 8-∅22 |
| DN250 | PN10 | 400 | 395 | 350 | 320 | 12-∅22 |
| DN300 | PN10 | 450 | 440 | 400 | 370 | 12-∅22 |
Note:Face to Face dimension “L” can be customized according to customer requirements
Application:
FREE–VALVE Ceramic Rotary Double Disc Gate Valves are suitable for coal fired power plant, steel plant, cereals transport system, cement transport systems. In these applications, pneumatic conveying method is used to reduce manpower demand, and improve system efficiency and reliability, and is easy to realize automation.
