Pneuamtic Ceramic Lined Butterfly Valves

FREE-VALVE ceramic lined butterfly valves were operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves. The ceramic materials are applied to the most common problem areas within disc of butterfly valve.These ceramic materials are 6-8 times harder than stainless steels and the result is a control valve that functions properly in a harsh, abrasive service environment.

Rated 4.6/5 based on 517 customer reviews
Share:
Content

FREE-VALVE Pneuamtic Ceramic Lined Butterfly Valves are operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves. The ceramic materials are applied to the most common problem areas within disc of butterfly valve.These ceramic materials are 6-8 times harder than stainless steels and this ensures that the ceramic butterfly valve can operate under harsh, abrasive service environment.

Features
1.Wafer type ceramic butterfly valves are light and easy to install.
2.The disc sealing ring and seat are both high performance ceramics. High pure 99% Alumina, Zirconia and solid Tungsten carbide are used for wafer type ceramic butterfly valves. Different ceramics materials are suitable for different applications.
3.Body materials are selected on different applications.
4.Ceramics are nearly universally chemical resistant.
5.Much longer service life than any other common butterfly valves, and save maintenance cost for customers,due to high hardness and excellent corrosion resistance of high performance ceramics.
6.Pneumatic operation ceramic butterfly valves are easy to realize the remote control or the local control.
7.It has the inherent characteristic of the adjustable performance of butterfly valve.
8.Using single acting cylinder,it can be automatically turned off or turned on under air break conditions,Meeting process requirements on site.

Technical Specification:

1 Size Range NPS4~NPS12,DN50~DN300
2 Nominal pressure Class 150 /PN10/PN16
3 Service Temperature 0~200ºC
4 Connection Type Flange,Wafer
5 Disc Carbon steel+ceramic,stainless steel+ceramic
6 Seat ceramic
7 Body WCB,CF8,CF8M,CF3,CF3M
8 Pressure test GB/T13927, API598
9 Face to Face GB/T12221, ASME B16.10
10 Operating Type Pneumatic/manual

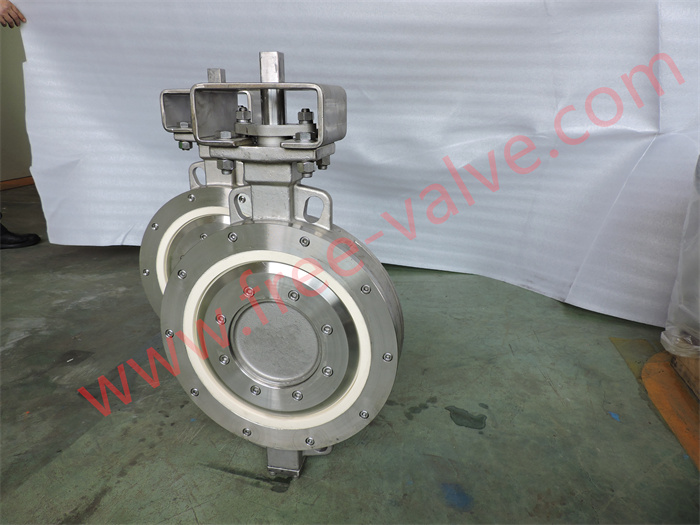

ceramic lined butterfly valve

Main outline and connection dimensions

DN PN L1 L2 D D1 D2 n-∅d
DN80 PN10 49 114 195 160 135 8-∅18
DN100 PN10 56 127 215 180 155 8-∅18
DN125 PN10 64 140 245 210 185 8-∅18
DN150 PN10 70 140 280 240 210 8-∅22
DN200 PN10 71 152 335 295 265 8-∅22
DN250 PN10 76 165 405 355 320 12-∅22
DN300 PN10 83 178 460 410 375 12-∅22

Note: Our company also produces other pressure grade products, flange connection size according to customer requirements according to GB/T9113 ,ASME B16.5 or JIS B2220.

Application:
FREE-VALVE Pneuamtic Ceramic Lined Butterfly Valves are suitable for all types of abrasive slurry including bauxite, Mining slag,Coal washing ,Ash Slurry, Ash,Grain,Quartz Sand,Metallurgical dust,etc.

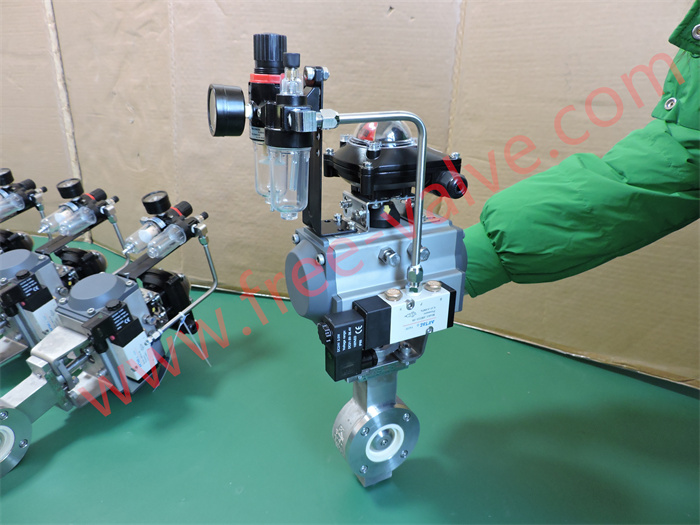

Pneuamtic Ceramic Lined Butterfly Valves 01
