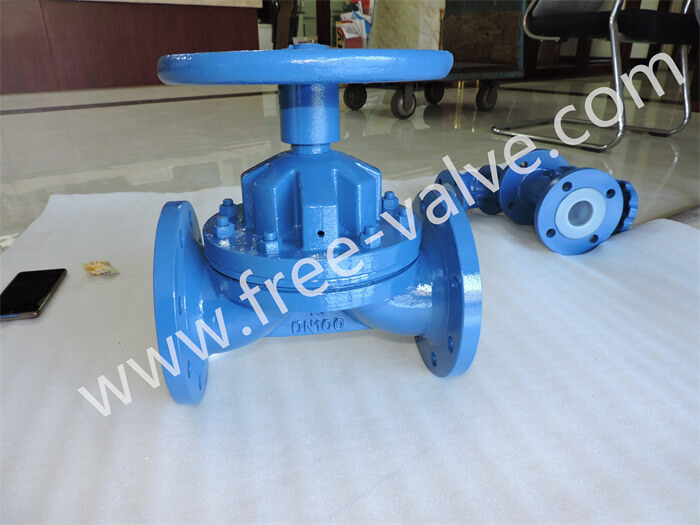

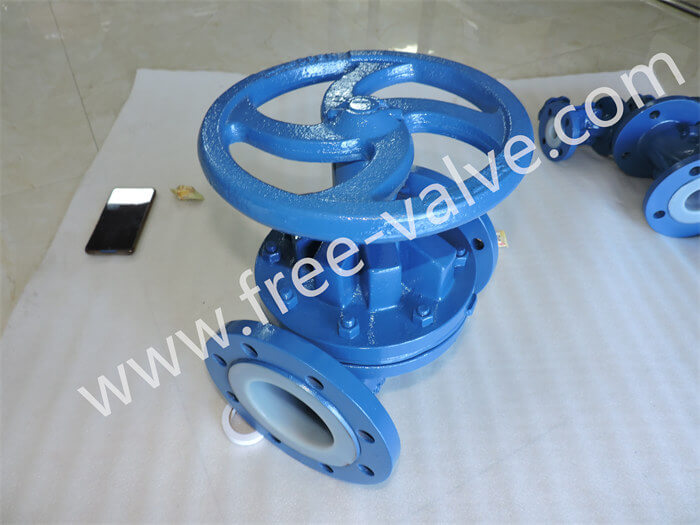

Flange end FRG41F46 PFA fluorine lined diaphragm valve with maual handwheel
FREE-VALVE’s manual fluorine lined diaphragm valve is a special form of on-off valve, disc is a diaphragm made of corrosion-resistant soft material,the diaphragm separates the bottom body cavity from the top bonnet cavity
FREE-VALVE’s Flange end FRG41F46 PFA fluorine lined diaphragm valve is a special form of on-off valve, disc is a diaphragm made of corrosion-resistant soft material,the diaphragm separates the bottom body cavity from the top bonnet cavity, so that the stem, metal disc and other parts above the diaphragm are not subject to media corrosion,so fluorine lined diaphragm valve eliminate the packing seal structure, and will not produce media leakage.
Features:
- The diaphragmof using FEP/FPA/PTFE and rubber composite, suitable for variety of corrosive media.
- 100% gas seal can be achieved to ensure no leakage in outlet port.
- No direct contact between metal parts and medium
- Bi-directional and full flowing path can reduce pressure drop, weaken abrasion and prolong the serviceworking
Technical Specification
1) Size Range: DN25~DN400
2) Pressure Range: Class 150 /PN10 /PN16
3) Connection Type: Flange
4) Lining Material:PTFE , PFA , FEP
5) Body material:WCB, CF8 ,CF8M
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Operating Type: Manual Handwheel
Application
FREE-VALVE’s Flange end FRG41F46 PFA fluorine lined diaphragm valves are widely used in chemical industry, medicine and other industrial sectors to achieve the cutting of acid, alkali and other corrosive media in the production process.
